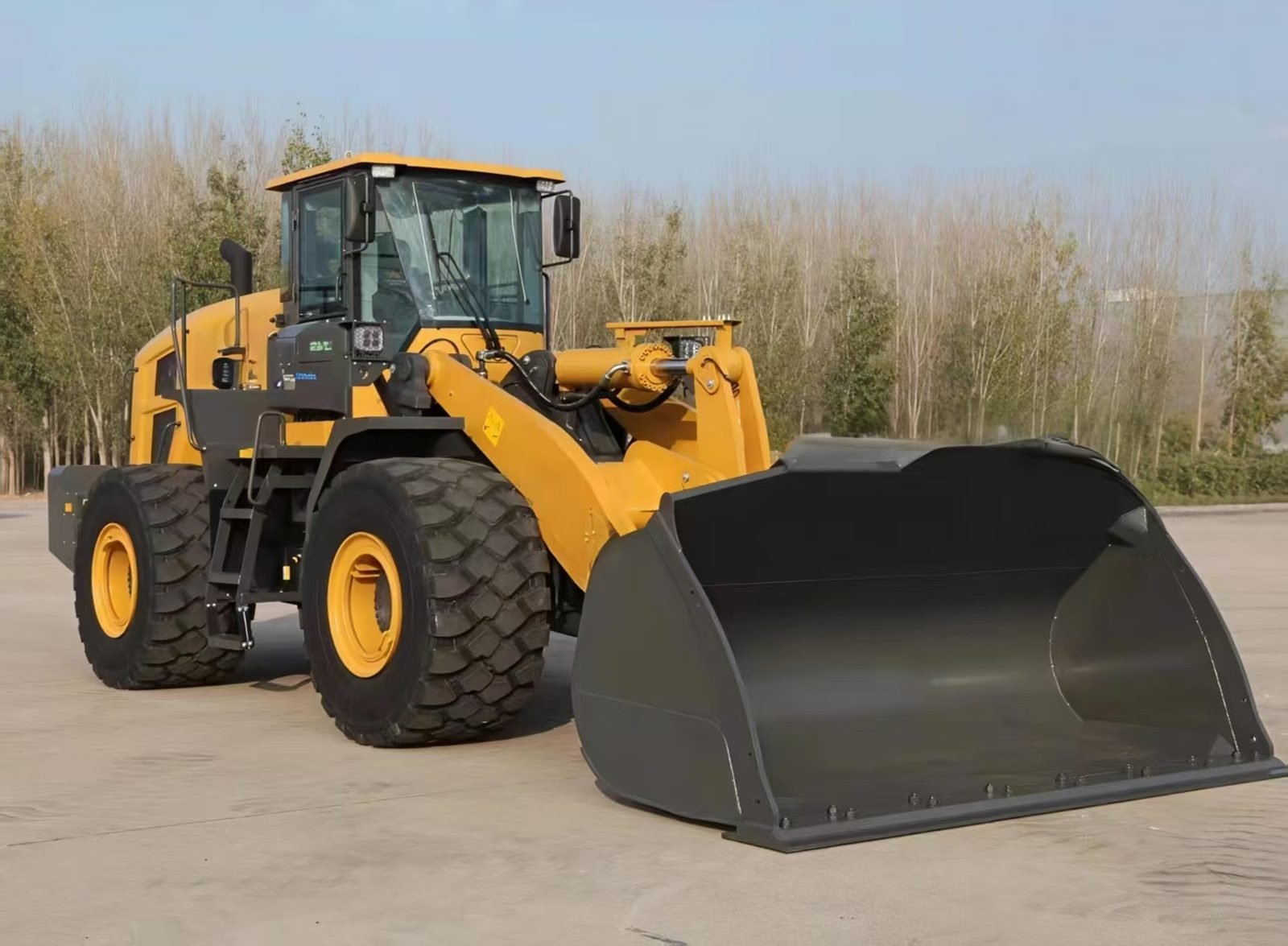

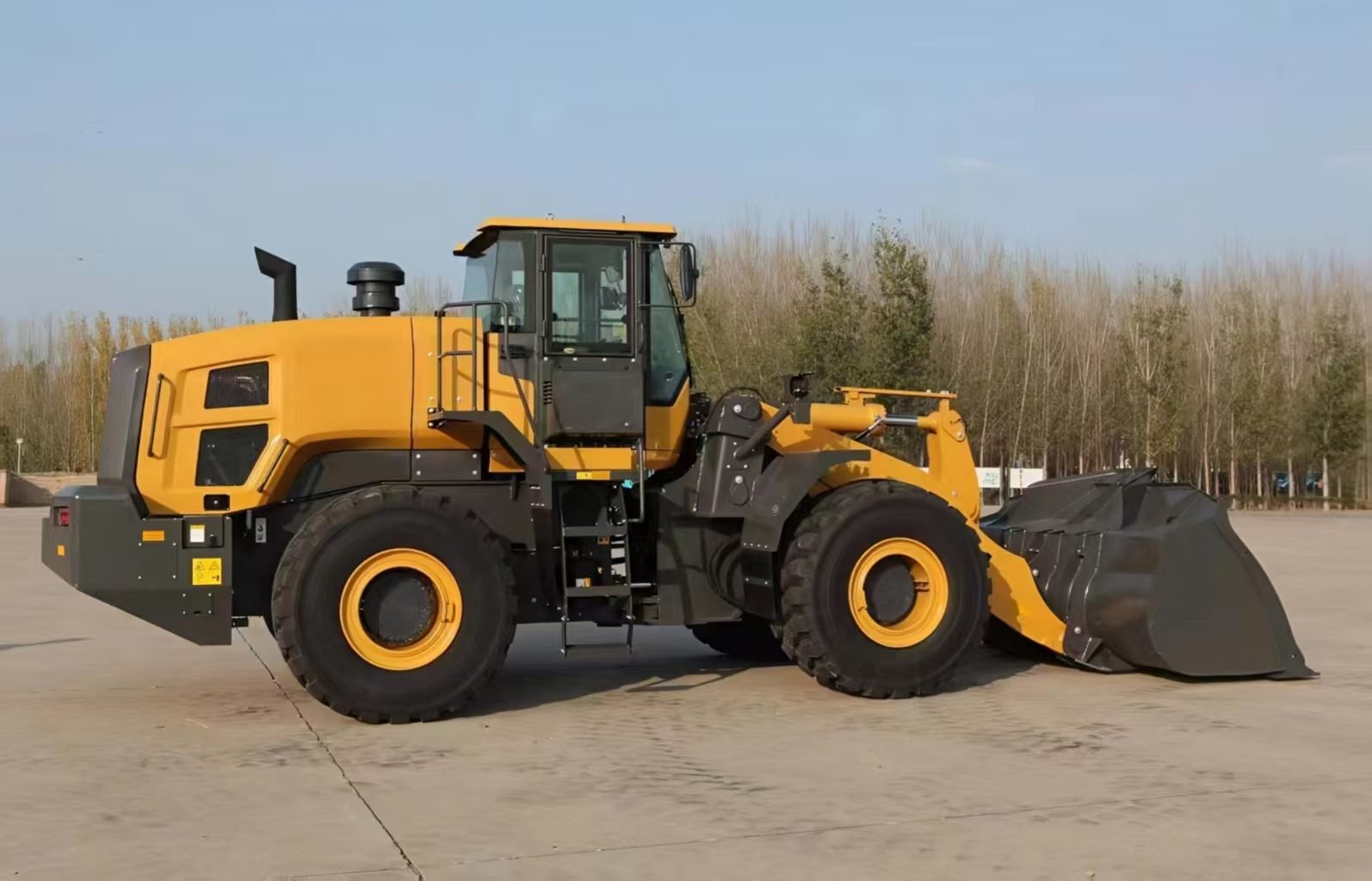

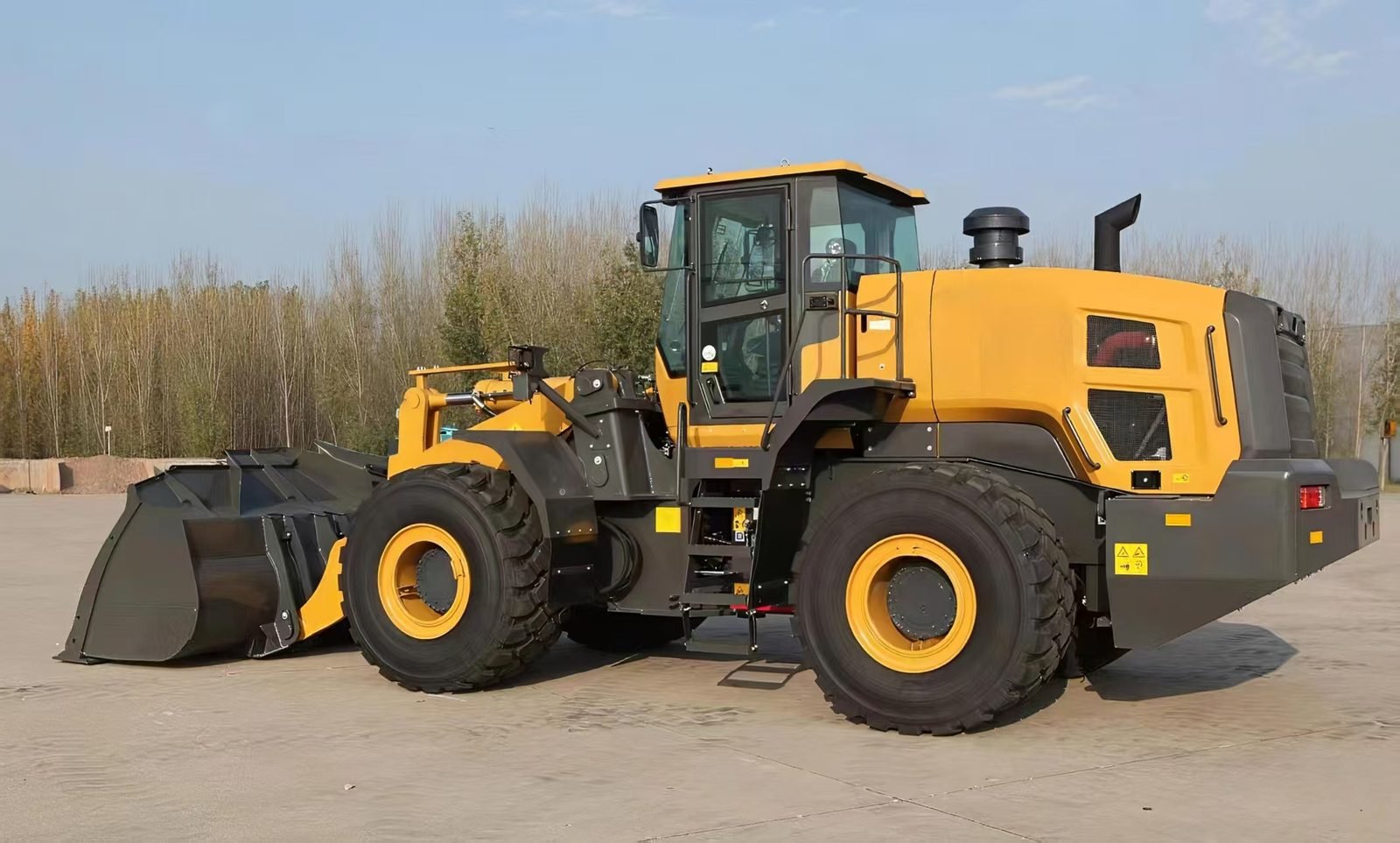

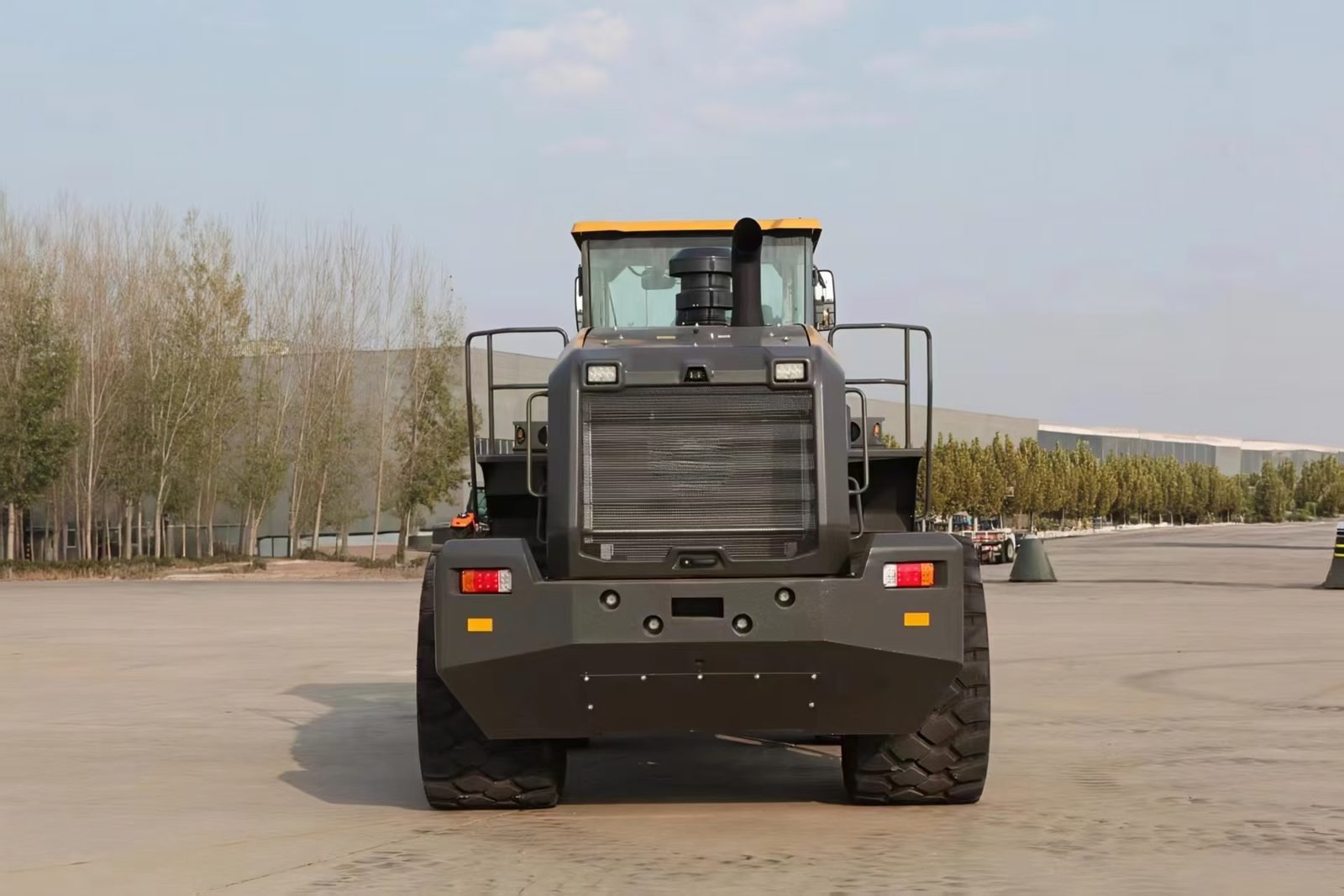

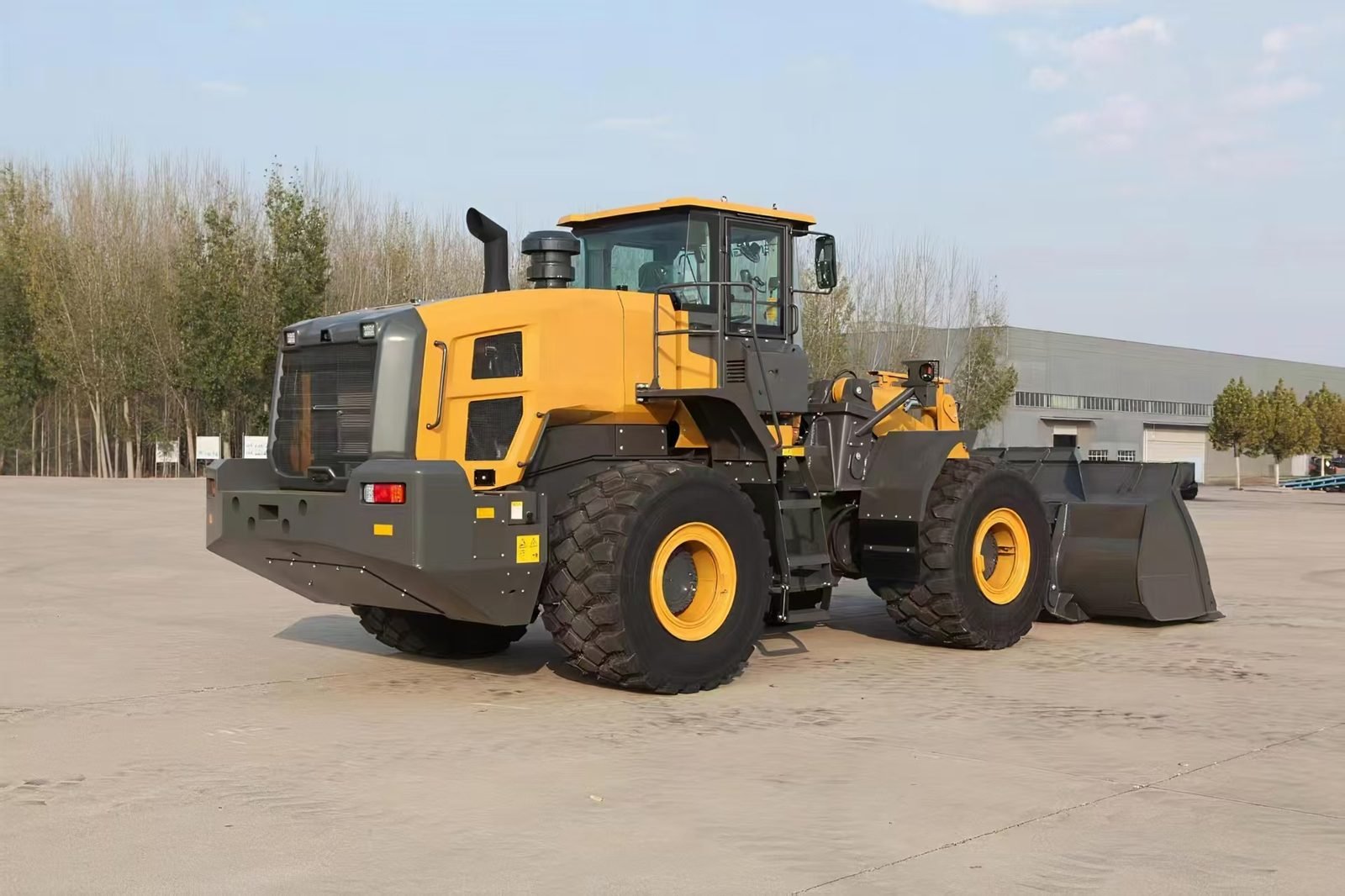

988K Wheel Loader (Cummins)
Flagship 8-tonne loader with ZF automatic transmission and Cummins power for the most demanding operations.
Key Specifications
Rated Load
8000 kg
Operating Weight
25500 kg
Bucket Volume
5.2 (4.5–7.0) m³
Wheel Base
3600 mm
Min. Ground Clearance
440 mm
Overall Dimension (L×W×H)
9550×3350×3490 mm
Main Specifications
| Rated Load 额定载荷 |
8000 kg |
| Operating Weight 操作重量 |
25500 kg |
| Bucket Volume 铲斗容量 |
5.2 (4.5–7.0) m³ |
| Wheel Base 轴距 |
3600 mm |
| Min. Ground Clearance 最小离地间隙 |
440 mm |
| Overall Dimension (L×W×H) 外形尺寸(长×宽×高) |
9550×3350×3490 mm |
Performance
| Breakout Force 最大掘起力 |
251 (max traction) / 240 (digging) kN |
| Max. Dump Height 最大卸载高度 |
2925~3565 mm |
| Max. Discharge Distance 最大卸载距离 |
1315~1625 mm |
| Max. Working Height 最大工作高度 |
6545 (max lift) mm |
| Articulated Angle 铰接角度 |
L37 / R37 ° |
| Max. Speed 最高车速 |
40 km/h |
Engine
| Engine Model 发动机型号 |
6LTAA8.9-C360 (Cummins) |
| Rated Power 额定功率 |
264 kW / 360 hp |
| Rated Speed 额定转速 |
2200 rpm |
| Displacement 排量 |
8.9 L |
Transmission & Axle
| Transmission Type 变速器类型 |
Electro-control countershaft / 电控换挡定轴式 |
| Gears 档位 |
F4 / R3 |
| Maker & Type 制造商/型号 |
ZF full automatic / ZF 全自动 |
| Axle 驱动桥 |
Xuzhou MEICHI heavy-duty |
| Final Drive 主减速型式 |
Planetary, single stage / 行星式单级 |
Capacities & Cycle Times
| Fuel Tank 燃油箱 |
420 L |
| Hydraulic Tank 液压油箱 |
295 L |
| Boom Raise Time 大臂提升时间 |
— s |
| Hydraulic Cycle Time 液压循环时间 |
10.3 s |
Tires
| Tires 轮胎品牌 |
— |
| Tire Size 轮胎规格 |
— |
| Type / Layer 类型/层级 |
— |
Standard bucket 5.2 m³; optional rock / larger buckets 4.2–7.0 m³. Cummins engine, ZF automatic transmission, reinforced heavy-duty axles and frame.
Specifications are subject to change without notice. Images are for reference only; the delivered machine shall prevail.
