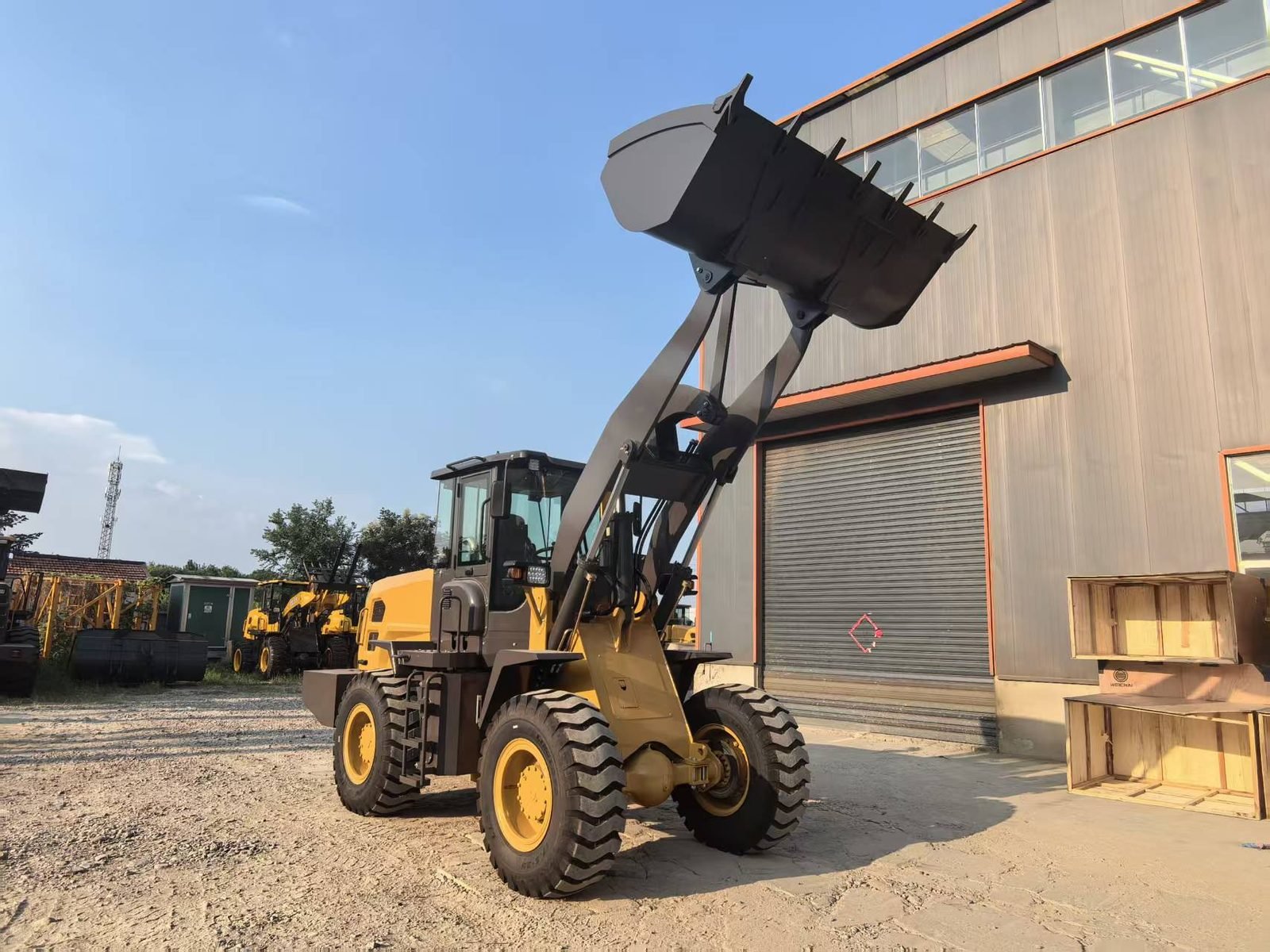

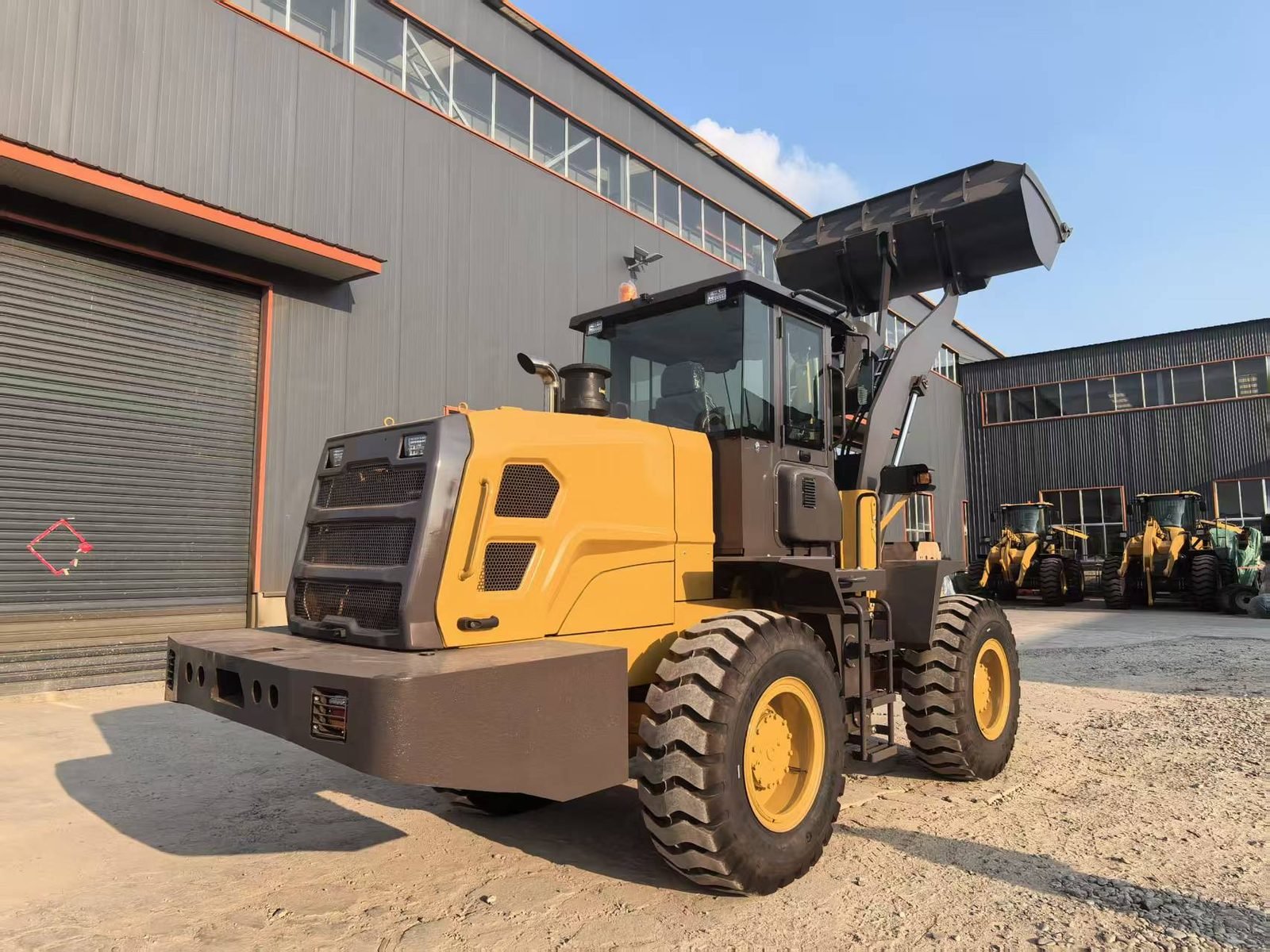

ZL935 Wheel Loader
A proven 3-tonne class workhorse for construction, municipal and agricultural material handling.
Key Specifications
Rated Load
3000 kg
Operating Weight
9850 kg
Bucket Volume
1.8 m³
Wheel Base
2740 mm
Min. Ground Clearance
400 mm
Overall Dimension (L×W×H)
7350×2354×3182 mm
Main Specifications
| Rated Load 额定载荷 |
3000 kg |
| Operating Weight 操作重量 |
9850 kg |
| Bucket Volume 铲斗容量 |
1.8 m³ |
| Wheel Base 轴距 |
2740 mm |
| Min. Ground Clearance 最小离地间隙 |
400 mm |
| Overall Dimension (L×W×H) 外形尺寸(长×宽×高) |
7350×2354×3182 mm |
Performance
| Breakout Force 最大掘起力 |
98 kN |
| Max. Dump Height 最大卸载高度 |
3046 mm |
| Max. Discharge Distance 最大卸载距离 |
1063 mm |
| Max. Working Height 最大工作高度 |
3917 mm |
| Articulated Angle 铰接角度 |
L37 / R37 ° |
| Max. Speed 最高车速 |
39 km/h |
Engine
| Engine Model 发动机型号 |
WP6G125E22 |
| Rated Power 额定功率 |
92 kW / 125 hp |
| Rated Speed 额定转速 |
2200 rpm |
| Displacement 排量 |
6.75 L |
Transmission & Axle
| Transmission Type 变速器类型 |
Countershaft, power shift / 定轴式动力换挡 |
| Gears 档位 |
F4 / R2 |
| Maker & Type 制造商/型号 |
BEI LIAN 428 / YJ315 |
| Axle 驱动桥 |
QIAO AN ZL30G |
| Final Drive 主减速型式 |
Planetary, single stage / 行星式单级 |
Capacities & Cycle Times
| Fuel Tank 燃油箱 |
168 L |
| Hydraulic Tank 液压油箱 |
112 L |
| Boom Raise Time 大臂提升时间 |
4.6 s |
| Hydraulic Cycle Time 液压循环时间 |
8.1 s |
Tires
| Tires 轮胎品牌 |
LINGLONG / 玲珑 |
| Tire Size 轮胎规格 |
17.5-25 |
| Type / Layer 类型/层级 |
Bias / 14PR / L3-E3 |
Standard: pilot control, extended boom, 1.8 m³ bucket.
Specifications are subject to change without notice. Images are for reference only; the delivered machine shall prevail.
